Wooden Camera - Panasonic EVA1 Accessory Kit (Base)

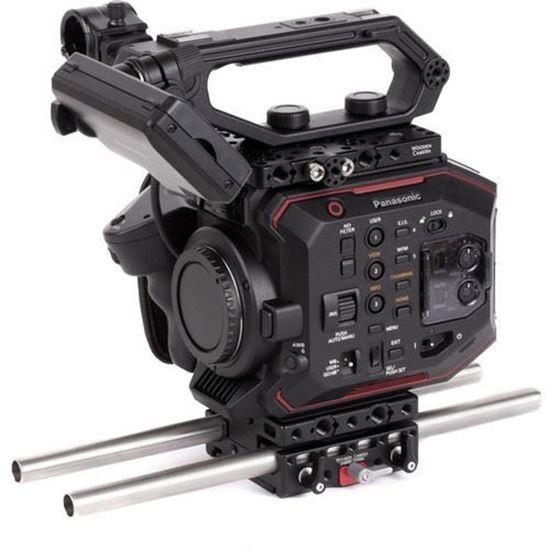

The Panasonic EVA-1 Accessory Kit (Base) from Wooden Camera is a camera support package designed for the Panasonic EVA1 camera. The EVA1 accessory package includes one Top Plate (Panasonic EVA1), Unified Baseplate (Panasonic EVA1), and two 15mm Rods (12").

The Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.

The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS5 and Panasonic EVA-1, VariCam LT, and VariCam 35. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.

The Baseplate provides two quick-release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.

The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" apart. It also has a non-slip rubber surface that will prevent the camera from twisting.

The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.

The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).

The Top Plate (Panasonic EVA1) attaches via four captured 1/4"-20 screws and has rows of 1/4"-20 holes and the ARRI accessory mount is available in several places (3/8"-16 screw hole with adjacent locating pins). The Panasonic EVA-1 Handle (sold separately) can be reinstalled on the top plate and the Panasonic LCD Mount can be installed on the side using the included LCD Bracket Adapter. The right rear ARRI accessory mount provides attachment for the Battery Slide (Panasonic EVA1) which allows V-mount or Gold mount batteries to be installed at the rear of camera without the use of a baseplate.

The 12" long 15mm Support Rods can be used for mounting accessories. Each rod is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.
