Sony Signal Processing Unit

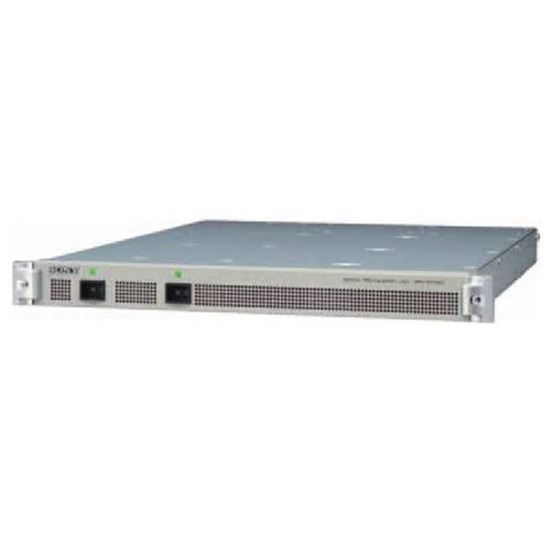

The PFV-SP3100 Signal Processing Frame (1RU & 4-Slot) from Sony is a signal processing frame that accommodates up to (4) HKSP/HKPF-SP Series function boards with a redundant power supply. When this unit is used in conjunction with a HKSP-300 processing module, the PFV-SP Series processing boards can be managed via a LAN 100Base-T Ethernet network.

This unit features a rack height of 1U and can be placed in a standard 19" wide rack. It also allows for an optional hot-swappable backup power supply and CPU option. This unit's internal air-forced cooling and robust power supply allow it to support any combination of modules. The frame's flexible configuration options and range of modules for multi-format and multi-bit-rate compliant applications also make it well suited as a migration path from SD to HD, among many other possibilities.

This unit supports the following HKSP/HKPF-SP boards:

• HKPF-SP003 Digital Video Distribution Amp
• HKPF-SP021 Optical to Electrical Converter
• HKPF-SP022 Electrical to Optical Converter
• HKSP-008HD HD Frame/Line Synchronizer
• HKSP-061M 8 x 4 Digital Video Selector
• HKSP-105 HD Audio/Video Multiplexer Board
• HKSP-106 HD Audio/Video Demultiplexer Board
• HKSP-1125 HD Up-converter Board
• HKSP-300 Processing Module Controller
• HKSP-313 HD Color Corrector Board
• HKSP-525 Down Converter Board
• HKSP-R80 Routing Switcher Controller
• HKSP-R81 Routing Switcher Backup CPU
• UCP-8060 Universal Control Panel
• HKSP-313 HD Color Corrector Board
• HKSP-525 Down Converter Board
• HKSP-R80 Routing Switcher Controller
• HKSP-R81 Routing Switcher Backup CPU
• UCP-8060 Universal Control Panel
