Sony Digital Wireless Receiver

Product Highlights 470.125 to 607.875 MHz, 25 kHz Steps 614.125 to 615.875 MHz, 25 kHz Steps 2-Channel Diversity Receiver High-Quality Wireless Audio Dante Interface AES 256-Bit Encryption Dual OLED Displays 244 MHz Wideband User Setting Memory Adjustable Audio Output Level

Manufacturer: Sony

Availability: In stock

SKU: SON-DWR-R03D

MPN: DWR-R03D

R105 067,47

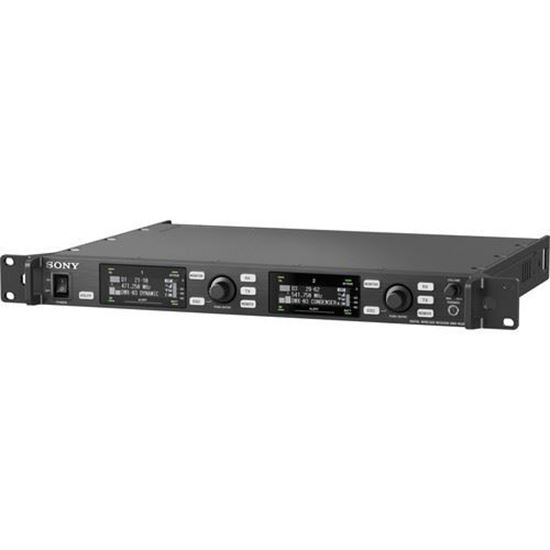

The DWR-R03D DWX Series Dual-Channel Digital Wireless Receiver from Sony is the updated, third generation 1 RU rack-mountable wireless receiver featuring Sony's digital audio processing, encryption, and RF transmission technologies. It can be used to capture audio for live stage, theater, and studio based TV applications when paired with a transmitter and microphone (sold separately).

The dual-channel receiver offers secure, stable transmission and reception of high-quality audio with low latency. It is suitable for large-scale multi-channel productions supporting up to 21 simultaneous channels per 8 MHz TV band or up to 16 simultaneous channels per 6 MHz TV band. In addition, support for Dante audio-over-IP standard enables networked multi-channel operation.

The DWR-R03D is compatible with Sony Wireless Studio control software for Windows (Ver 5.0 or later). This allows flexible remote operation and remote control of up to 82 transmitters using the Cross Remote function combined with the RMU-01 remote control unit (available separately).

Ultra-wideband dual-channel receiver

Dante interface for audio-over-IP networking with support of redundant networks with two Dante ports

Ultra-short audio latency of 1.2 ms

Reliable transmission with X-Dimension Diversity reception system and high dynamic range RF circuit

4-antenna diversity reception capability for wide-area operation coverage or extremely stable RF

Headphone monitoring among receivers which are in Dante network (Solo/Mix) mode

Remote control of transmitter settings with 'Cross Remote' function, with range coverage increase using optional RMU-01 transmission antennas

AC power output for cascade connection using supplied cable

Switchable analog and AES/EBU digital audio sub outputs

Transmitter/Receiver identifying function

Setting Lock function

Label function for naming each channel on receiver

User setting memory

1 dB step adjustable output level

Easy-to-read dual OLED displays

Operation status monitoring and remote control of devices via Wireless Studio software

Automatic frequency change for transmitter and receiver with Cross Remote and frequency scanning

Automatic frequency coordination without PC

Graphical spectrum analyzer

Automatic channel swap function switches audio outputs in case of dropout

The receiver includes V5.0 Wireless Studio PC software for networked remote control
