Wooden Camera - Panasonic VariCam 35 Unified Accessory Kit (Pro)

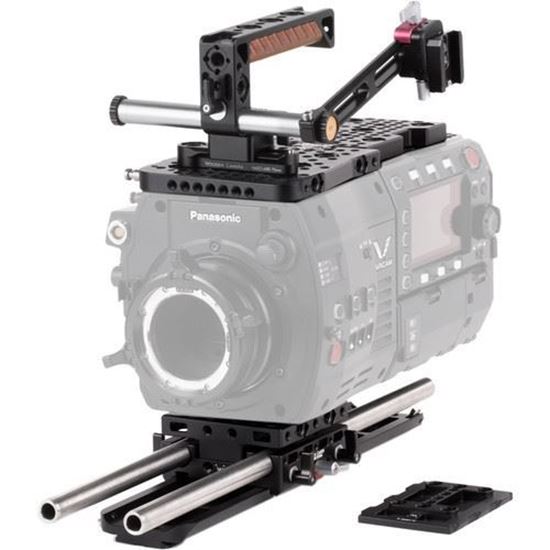

The Panasonic VariCam 35 Unified Accessory Kit (Pro) from Wooden Camera is designed for the Panasonic VariCam 35 camera. The VariCam 35 accessory package includes Top Plate (VariCam 35, Front), Top Plate (VariCam 35, Back), Unified Baseplate (Sony FS5, VariCam LT, VariCam 35), two 15mm Rods (12"), NATO Handle Kit (Plus, 100mm Rail), Safety Dovetail Plate (12"), and UVF Mount (VariCam 35, No Clamp).

The Top Plate is for use with the rear camera module of the Panasonic VariCam 35 recorder unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent). The included link piece can be installed to bind the front and back plates together.

The Unified Baseplate is designed for use with Sony FS5, VariCam LT, and VariCam 35 cameras. It is a quick-release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have 2 locking thumbscrews per side.

The two 15mm Single Support Rods (12") are used for mounting accessories including follow focus systems, matte boxes, lens supports, and servo motors.

The NATO Handle Kit consists of a quick-release top handle and 3.9" (100mm) NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around.

The 12" Safety Dovetail Plate is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment.

The UVF Mount from Wooden Camera is for use with the Panasonic VariCam 35 EVF (AU-VCVF1G OLED CVF). It has 3 points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF.
