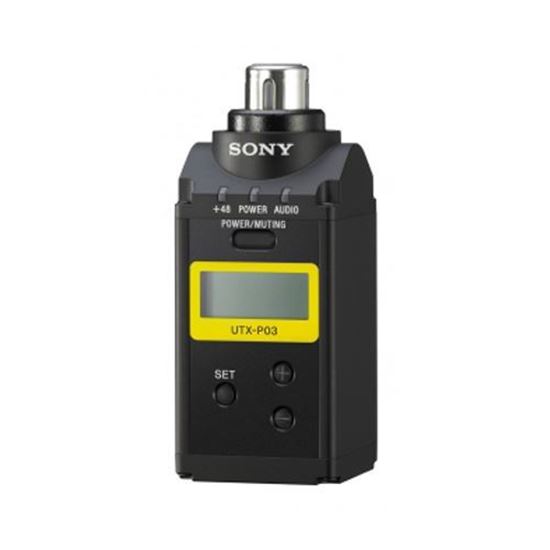

The 638 to 698 MHz version of the Sony UTX-P03 Integrated Digital Wireless Plug-On Transmitter features an all-metal chassis, an easy to read LCD display, a wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between transmitter and receiver, a Mic/Line switchable input, +48V phantom power, and digital companding circuitry. The transmitter is suitable for a wide range of wireless applications such as ENG (Electronic News Gathering), documentary work, talk shows, conferences, and more.
The transmitter is referred to as integrated digital because it utilizes DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.
The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection. An LCD display provides channel AND frequency information, battery life, RF-input level, audio-output status and accumulated operating time.
For power, the transmitter operates on two AA batteries for up to six hours, or on 5 VDC of USB power over a USB micro B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge.
The transmitter features a mic- and line-level switch for standard wired microphone- or line-level sources. The plug-on transmitter also features selectable +48V of phantom power for connection to a condenser microphone. Selectable transmission output power provides a choice between 5mW output, which is suitable for simultaneous multi-channel operation, or 30mW output for long distance transmission. The transmitter comes with a soft case.
Digital Companding
Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
Automatic Channel Scanning
Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
Frequency Coverage
Provides up to 72 MHz of transmission bandwidth
UWP Series / WL-800 Series Compatibility
Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
USB Power Options
Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
Phantom Power on Plug-On Transmitter
Provides selectable +48V of phantom power for use with condenser microphones
UHF Phase Locked Loop (PLL) Synthesized Frequencies
Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
Tone Squelch Circuitry
Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
Mic and Line Input Switch
Enables switching between microphone- and line-level inputs
Simultaneous Multi-Channel Operation
Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
Selectable RF Output
The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use
Visual Display
Features a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
Improved All-Metal Construction
The transmitter features metal construction for durability
