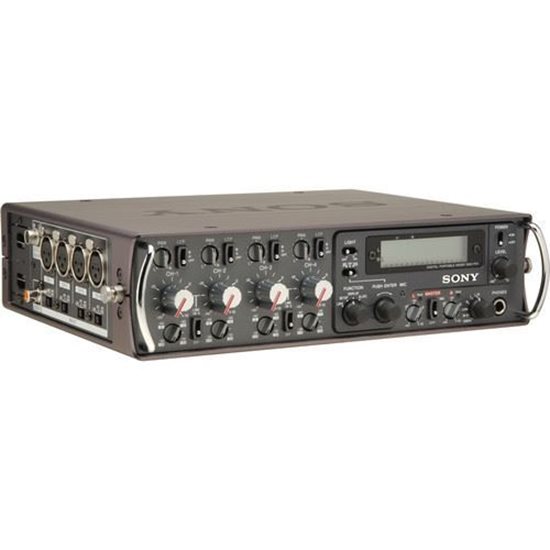

Sony Digital Portable Audio Mixer - 4 Channel

The Sony DMX-P01 is a professional digital field mixer that combines the convenience of portable studio grade audio mixing, with the pristine fidelity of high resolution digital technology. The mixer features 4 electronically balanced XLR inputs that are switchable between mic and line level signal. The output section also features 2 XLR outputs that are capable of providing mic or line level signal as well. The mixer features 24-bit A/D and D/A converters and 32-bit signal processing. The DMXP-01 also supports both, 48kHz and 96kHz sampling frequencies. AES/EBU and S/PDIF outputs are provided, a second S/PDIF input can be used to cascade additional mixers.

Channels 1/2 and 3/4 feature stereo linking, phase reverse switches on channels 2 and 4 allow M-S stereo decoding. Preset user locations are provided for storing parameter settings, providing quick recall of settings required by different users. The backlit LCD display features a choice of metering modes. VU, BBC-type, DIN-type, NORDIC-type, IEC-type 1 and dBFS metering are all user selectable. Low-cut filters and peak limiters are all user programmable and +48V phantom power is user switchable. The mixer is powered for approximately 5 hours with 8 AA batteries, external DC power is achieved via 4-pin XLR or DC power inputs.
