Sachtler FSB 10 ENG 2 MCF Carbon Fiber Tripod System with Sideload Plate (100mm)

Key Features: 100mm Tripod System with 26.5 lb Payload FSB 10 Fluid Head, Sideload Mechanism ENG 2 CF 2-Stage Carbon Fiber Tripod Lightweight Mid-Spreader; Rubber Feet
Manufacturer: Sachtler
Availability: Available in 7-10 days
SKU: SAC-1043
MPN: 1043
R106 371,91

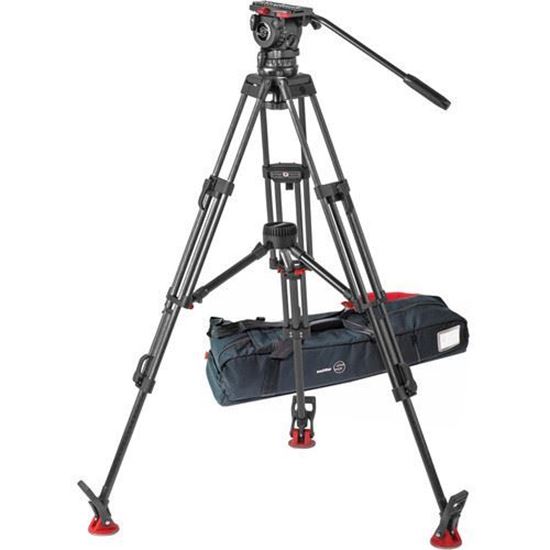

The Sachtler FSB 10 ENG 2 MCF Carbon Fiber Tripod System is a complete 100mm system for loads up to 26.5 lb. It includes the FSB 10 Fluid Head, ENG 2 CF 2-Stage Carbon Fiber Tripod Legs, mid-level spreader, rubber feet, and padded carry case that fits the entire system.

The FSB 10 Fluid Head is designed for cine-style cameras, such as the Sony FS7 and Canon C500. It features a sideload mounting mechanism with a 4.7" sliding range, and offers a spring-loaded 10-step counterbalance and 5+0 step pan/tilt drag. The pan range is a full 360°, and tilt range is +90 to -75°. The FSB 10 also has an illuminated bubble level ideal for dark environments, and comes with a pan bar that can be attached to either side.

The ENG 2 CF 2-Stage Tripod Legs feature a minimum height of 15.5" and maximum height of 59", with a convenient Quick Clamp Torque Lock system. They have a built-in safety cord that prevents the legs from opening while in transport, and a folding handle that provides for comfortable carrying in horizontal position.

The mid-level spreader is constructed of aluminum and is adjustable in four steps. The rubber feet are the snap-on clamp type. The tripod bag is made of water-resistant Cordura nylon and can be carried by its handles or adjustable shoulder strap. Various optional accessories can be incorporated into the system, including the SpeedLevel Clamp (model # S2044-0001), 150mm Bowl Adapter (# 3901), Pedestal Adapter (# 1030), Accessory Mount Kit (# 3987), and Multi-Disc Universal Flat Base Adapter (# 3914).

Sachtler FSB 10 Fluid Head with Sideload Mechanism

The FSB 10 Fluid Head from Sachtler supports payloads up to 26.5 lb. Designed to accommodate digital cinema-style cameras, such as the Sony FS7, Canon C500, and Blackmagic Ursa Mini. The head offers Sachtler's Sideload mechanism with a sliding range of 4.7". It also features a 10-step counterbalance along with horizontal and vertical 5-step drag controls. In addition, a zero setting on the pan and tilt drag controls allows for unencumbered movement of the head.

The fluid head features a 100mm bowl interface for tripod mounting and incorporates an illuminated bubble level for easy leveling in poor light conditions. A pan handle, which can be mounted on either side of the head, is also included.

Leveling Ball with Flat Base

The fluid head features a 100mm ball for quick leveling on your tripod legs. The ball features a flat base so you can also mount it on a flat surface.

Frictionless Leak-Proof Fluid Damping

Frictionless leak-proof fluid damping with five levels of drag enable precision adjustment to match the needs of your shot. A zero setting allows complete disengagement of drag for fast panning.

Camera Mounting and Balancing

Featuring a sideload mechanism with a sliding range of 4.7" that offers the ease of a touch and go quick release plate and the balancing capability of a sliding baseplate. This sideload setup allows for up to 4.7" of balance plate travel.

Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs (100mm Bowl) - Supports 88 lbs

The CF 100 ENG 2CF two stage tripod, provides maximum stability and carrying capacity. Constructed and drawn out of one-piece carbon fiber material, it is twist resistant and lighter than dural aluminum. It features a 100mm / 4" bowl, tube diameter of 22mm (0.87") and is fitted with the Sachtler quick clamping system, so you can securely - and visibly - lock the tripod.

The CF 100 ENG 2CF's double extension provides greater stability, allowing an extended height range with a payload of 88 lb., and with a weight of only 5.3-lb it's extremely lightweight, solid and stable.

Carbon fiber construction with 22mm (0.87") tube diameter
100mm / 4" bowl base
Double extension design
Maximum height of 59.0-inch
Quick clamping system, locks tripod legs in seconds
Supports up to 88 lb.
Built-in transport safety cord, preventing the legs from opening while in transport
Folding tripod handle, for comfortable carrying of tripod in horizontal position
for extra stability the CF-100 ENG HD 2CF is also available for a load capacity of 210 lb at a height of 61.8-inch

Sachtler Mid-Level Spreader for 100mm/150mm Tripods, OB-2000M & Cine 2000 (Except Short Tripods)

This Mid-Level Spreader from Sachtler fits all 100 and 150mm bowls (except for short tripods), OB-2000M, Cine 2000, and Cine 2000 medium tripods. It is used when shooting on uneven surfaces such as steps, rocky ground, or slopes. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other. It attaches to the center bracket of a tripod and its arms are telescopic to allow for extension of a tripod leg without detaching the spreader.

UPC: 806576213925

Sachtler Rubber Feet (Set of 3)

Set of three Sachtler Rubber Feet. Snap these feet onto your tripod when it's not possible to use the dual spiked feet, ideal on slippery and glossy floors. For all Tripods with Off-Ground Spreaders (Except OB-2000/M and Cine 2000/M tripods).

Sachtler ENG 2 Padded Bag

The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long. The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.

Construction

  • Water-resistant Cordura nylon
  • Padded interior
  • Zipper closure

Carrying options

  • Interlocking handles
  • Attached, adjustable shoulder strap

Compatible with

  • Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
  • Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods
